Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable

    Buy cheap Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable from wholesalers

    Buy cheap Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable from wholesalers
    • Buy cheap Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable from wholesalers
    • Buy cheap Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable from wholesalers
    • Buy cheap Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable from wholesalers
    • Buy cheap Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable from wholesalers

    Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable

    Ask Lasest Price
    Brand Name : YUANTONG
    Model Number : ADSS-SJ
    Certification : ISO,ANATEL,ROSH,TLC,CCC
    Price : negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000km per week
    Delivery Time : within 7 working days
    • Product Details
    • Company Profile

    Single Sheath ADSS Outdoor All Dielectric Self Supporting Aerial Optical Cable

    Manufacturing outdoor self-supporting 2-144 core Single Sheath ADSS cable fiber optical fiber optic cable adss

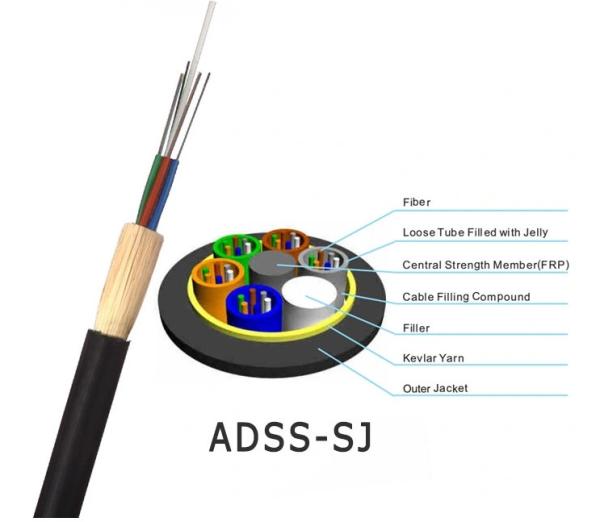

    The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes are stranded around the non-metallic strength member to form the cable core. The cable core is filled with water blocking compound and PE inner jacket is extruded. Then the aramid yarn armored around the inner jacket to reinforce . Finally, PE or AT outer jacket is completed.

    The difference, however, is that the Single Sheath ADSS has no inner sheath.

    • Non-metal enhanced components
    • Loose tube layer dry type
    • Aramid yarn/Kevlar Reinforcement
    • PE outer sheath outdoor all dielectric optical cable

    Application

    • Communication Line Used For Power Pole Erection

    Technical Parameter

    Fiber CountOuter Dia.(mm)RST(KN)MAT(KN)Allow the flat force
    (N/100m)
    Mini Bending
    Radius(mm)
    Attenuation
    (db/KM)
    Operation
    Temperature(℃)
    N.W(kg/km)
    Long TermShort TermStaticDynamic1310nm1550nm
    2-3610.57.53300100020D10D≤0.36≤0.22-40~+7085
    38-4610.97.53300100020D10D≤0.36≤0.22-40~+7092
    48-7212.37.53300100020D10D≤0.36≤0.22-40~+70117
    74-96147.53300100020D10D≤0.36≤0.22-40~+70149
    98-12015.67.53300100020D10D≤0.36≤0.22-40~+70183
    122-14417.17.53300100020D10D≤0.36≤0.22-40~+70220

    Company Profile
    Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, poweroptical fiber cable, submarine optical cable and special optical cable etc.

    Certificates

    Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmentalmanagement, health management and TLC.



    Welcome to visit our factory and get our samples.
    Your inquiry will be answered within 24 hours.

    Wishing to be your long- term partner,please feel free to contact me,we will do our best for you.

    Choose us, won't make you disappointed:
    1.OEM/ODM available
    2.Steady product quality
    4.Strict quality control
    5.Quick delivery time
