Description

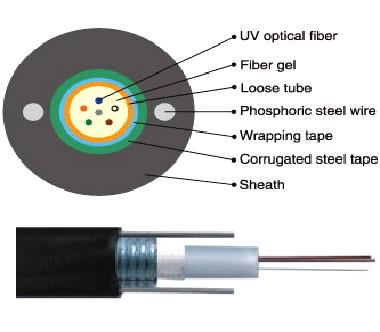

The 12-core GYXTW optical fiber cable Unitube light armored cable is directly buried in the overhead pipeline, laying two 1.2mm parallel steel wires, with waterproof filling compound Jelly, which is widely used in overhead/pipeline/direct buried laying applications. This type of fiber optic cable is praised for its excellent performance in long distance symmetry. In fact, GYXTW optical cable plays an important role in the telecommunications industry, and many technicians highly recommend it.

Features

Low dispersion and attenuation
The correct design, precise control of the remaining length of optical fiber and unique stranding process make the cable have excellent mechanical and environmental properties
The double sheath structure makes the cable have good moisture-proof and anti-extrusion property
Small cable diameter, light weight and easy laying
Working temperature: - 40~+60 ℃
Waterproof layer with strong waterproof performance
Polyethylene outer sheath and metal reinforcing member steel strip to enhance the extrusion and tensile resistance of cables
Up to 24 fiber cores
The loose tube is located in the center, has good residual length, and minimizes the impact of lateral extrusion.
Bi-metal wire provides excellent strain performance as a strength member.

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GYXTW-2～12	2～12	9.0	85	600/1000	500/1500	15D/30D
GYXTW-14～24	14～24	9.0	85	600/3000	1000/3000	15D/30D
GYXTW-2～12	2～12	10.0	105	1000/3000	1000/3000	15D/30D
GYXTW-14～24	14～24	10.0	105	1000/3000	1000/3000	15D/30D
GYXTW-26～36	26～36	14.0	190	1000/3000	1000/3000	15D/30D
GYXTW-38～48	38～48	15.0	216	1000/3000	1000/3000	15D/30D

PRODUCT INTERESTED PLEASE CLICK: YT catalogue .pdf FOR MORE DETAILS
