Double Sheathed Simplex Single Mode Fiber Jumper Cables 4.6mm

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	Patch Cable
Certification :	CCC,IEC,ISO9001,IAF
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, D/P
Supply Ability :	5000 pcs per week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

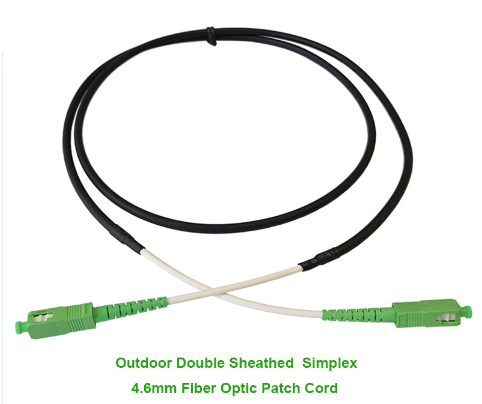

Double Sheathed Simplex Single Mode Fiber Jumper Cables 4.6mm

simplex outdoor double sheathed optical fiber jumper 4.6mm

Product Description

It consists of a 900um multimode or single-mode fiber. The inner sheath is 3.0mm low-smoke halogen-free inner sheath made of aramid yarn strength components. Aramid yarn non-metallic strength member and final 4.6 mm LSZH outdoor jacket.
Ideal for internal/external high EMI FTTH applications - horizontal, riser and piping.

Feature

G652D, G657A, OM1, OM2, OM3 and OM4 fiber types are available.
All dielectric structures are made of aramid yarn to provide physical protection and mechanical strength.
Double LSZH sheathed cable has good tensile strength, mechanical, rodent, UV and environmental protection.

Mechanical, Environmental & Material Data

Fiber Mode	Singlemode or Multimode
Fiber count	1
Connector Style	SC, FC, ST, LC, MU, E2000, DIN
Polish or Ferrule Interface Type	PC, UPC, APC
Cable Lengths	Custom Lengths
Jacket Material	LSZH
Outer Jacket Color	Black
Inner Jacket Color	White
Strength Member	Aramid Yarn
Outer Jacket Diameter(mm)	4.6 ±0.1
Inner Jacket Diameter(mm)	3.0 ±0.1
Crush(N/100mm)	1000
Maximum Tensile Load(Long term)	150N
Maximum Tensile Load(Short term)	400N
Storage Temperature(°C)	-20°C to 60°C
Installation Temperature(°C)	-5°C to 50°C
Operating Temperature(°C)	-20°C to 60°C

Optical Characteristics

Fiber Type	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

Optical Performance Data

Item	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insert Loss/connector (single Fiber)	0.2dB Max. (0.15dB typ.)			0.3dB Max. (0.25dB typ.)
Return Loss	≥45 dB	≥50 dB	≥60 dB	PC≥35dB
Insert Loss/MTRJ Connector	0.5dB Max. (0.45dB typ.)			0.5dB Max. (0.45dB typ.)
Pull Strength	≥98N			≥98N

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
