YTTX GYXTW G652d 8 Core Fiber Optic Cable Single Mode Light Weight

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	GYXTW-8 Core
Certification :	CE/ROHS/ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, D/P
Supply Ability :	500km per week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

YTTX GYXTW G652d 8 Core Fiber Optic Cable Single Mode Light Weight

YTTX Cheap Fast Outdoor GYXTW G652d Single Mode 8 Core Fiber Optic Cable

Description

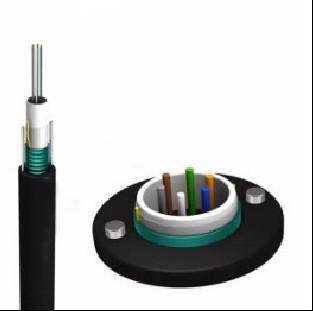

250μM fiber is placed in a loose tube made of high modulus plastic;
The pipe is filled with waterproof filling compound, which can be used under multiple environmental conditions;
The pipe is wrapped with a layer of corrugated steel strip longitudinally. Waterproof materials are used between corrugated steel belt and loose pipe to keep the cable compact and waterproof;
Place two parallel steel wires on both sides of the steel strip, and the cable is equipped with PE sheath.

Characteristics:

·Good mechanical and temperature performance
·Hydrolytic resistant high strength loose tube
·Special pipe filling compound ensures critical protection of fiber
·Compression resistance and flexibility
·Two parallel wires ensure tensile strength
·Small diameter, light weight and convenient installation

Model Number	GYXTW
Type	Coaxial
Number of Conductors	2
Certification	UL ,ROHS,SGS
Fiber	SM/MM/OM3/OM4
Fiber Core	2-24 core
Jacket Material	PE /LSZH/PU
Laying method	Pipeline/Overhead/Direct bury/Duct
keywords	outdoor fiber optic cable
Color	Black or customized
Fiber brand	Corning, LS, etc
Fire Resistant	Yes
Armored or not	Corrugated steel tape armored

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Technical Parameters

Cable

Type

Fiber

Count

Cable

Diameter(mm)

Cable Weight

kg/km

Tensile

Strength Long

/Short Term N

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYXTW-2~24

2~24

8.8

600/1500

300/1000

15D/30D

Standards:

GYXTW cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
