Outdoor Communication ADSS Fiber Optic Cable Double Layer 144 Core For Aerial

PRODUCT DESCRIPTION

144core Arimid Yarn Member ADSS Fiber Optic Cable For Aerial

Quick detail

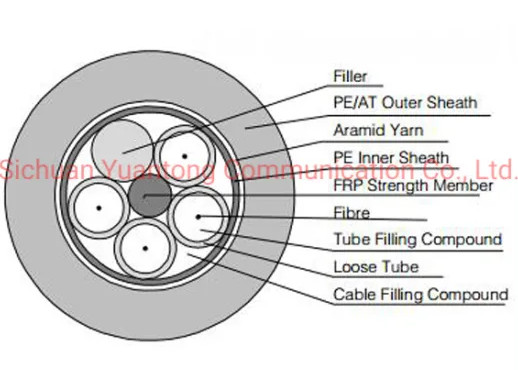

The fibers are positioned in a loose tube made of PBT. The tubes are filled with a water-resistant filling compound. A fibre reinforce plastic locates in the center of core as a non-metallic strength member.
The tube(and the fillers) are stranded around the strength member into a compact and circular core.
The cable core is covered with a PE inner sheath. After the aramid yarns covered over the inner sheath, the cable is completed with a PE or AT outer sheath.

Characteristics

1. Small cable diameter, light weight, 150m span, low attached load on tower

2. Tensile strength is over 90KN

3. Non-metal structure, good insulation, anti-thunder

4. Fine production technology, even force for aramid fiber, with superior stress flexibility

5. Adapt for bad climate

6. May construct without power cut, a power line failure doesn’t influence cable’s normal transfer

7. Tensile units are elastic modulus aramid fiber

8. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E)≤25KV/m

Application

1. Long distance communication and local area network, especially suitable for long span environment,complex area.

2. Erect on the same pole with power line in new and old power line.

Category	Description		Specifications
			G.652D
Optical Specifications	Attenuation	@1310nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N

Fiber Count

Outer

Dia. (mm)

Tensile Resistance(N)

Crush Resistance (N/100m)

Mini Bending Radius (mm)

Attenuation (dB/km)

Operation

Temperature (℃)

N.W.

(kg/km)

86-144

12.2

1000

3000

1000

3000

10D

20D

≤ 3.0

≤ 1.5

-40℃~+60℃

148
