96 Core 90KN ADSS Fiber Optic Cable Self Supported FRP CSM

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	ADSS-96
Certification :	ROSH ,TLC, CCC, ISO
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T, Western Union
Supply Ability :	500km per week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

96 Core 90KN ADSS Fiber Optic Cable Self Supported FRP CSM

96 Core Single Sheath Self Supported ADSS Fiber Optical Cable

PRODUCT DESCRIPTION

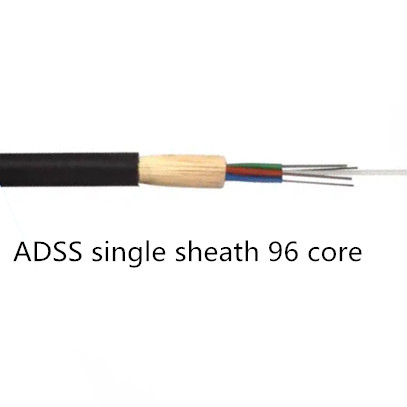

96 Core Single Sheath Self Supported Optical Fiber Cable

Quick detail

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteristics

1. Small cable diameter, light weight, 100m span, low attached load on tower

2. Tensile strength is over 90KN

3. The following measures are taken to ensure the cable watertight:
4. Single Fiber Reinforced Plastic as the central strength member
5. Loose tube filling compound
6. 100% cable core filling

Application

1. Long distance communication and local area network, especially suitable for long span environment,complex area.

2. Erect on the same pole with power line in new and old power line.

Fiber Parameters

No.	Items		Unit	Specification
				G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
		1550nm	μm	10.4±0.5

2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.36
9	Attenuation(max.)	1550nm	dB/km	≤0.22

96 Core 90KN ADSS Fiber Optic Cable Self Supported FRP CSM
