All Dielectric Adss Wire , 24core Aerial Self Supporting Aerial Cable

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	ADSS-24
Certification :	ROSH ,TLC, CCC, ISO
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T, Western Union
Supply Ability :	500km per week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

All Dielectric Adss Wire , 24core Aerial Self Supporting Aerial Cable

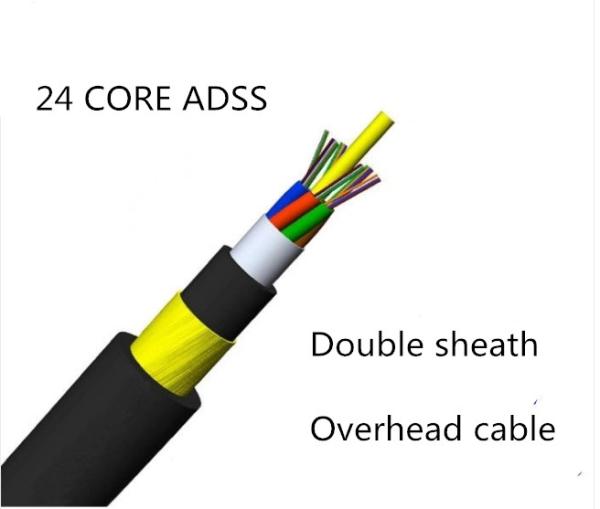

24core All Dielectric Self Supporting Single Mode Optical Fiber Cable for Aerial

PRODUCT DESCRIPTION

24core Arimid Yarn Member ADSS Fiber Optic Cable For Aerial

Quick detail

Actual situation of overhead power line is takes full consideration when ADSS cable is being designed, Suitable for different grade overhead power line. Polyethylene (PE) can be used for power lines with space potential not greater than 12KV. For overhead power lines above 110 KV (or space potential greater than 12 KV), the cable hanging point must be determined by calculating the distribution of electric field intensity, and electrical resistance (AT) jacket is applied. The dedicate design of aramid quality and stranding process can satisfy the demand on various spans.

Characteristics

1. Small cable diameter, light weight, 150m span, low attached load on tower

2. Tensile strength is over 90KN

3. Non-metal structure, good insulation, anti-thunder

4. Fine production technology, even force for aramid fiber, with superior stress flexibility

5. Adapt for bad climate

6. May construct without power cut, a power line failure doesn’t influence cable’s normal transfer

7. Tensile units are elastic modulus aramid fiber

8. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E)≤25KV/m

Application
Suitable for non-self-supporting aerial of power line.

Category	Description		Specifications
			G.652D
Optical Specifications	Attenuation	@1310nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N

Fiber Count	Outer Dia. (mm)	Tensile Resistance(N)		Crush Resistance (N/100m)		Mini Bending Radius (mm)		Attenuation (dB/km)		Operation Temperature (℃)	N.W. (kg/km)
Fiber Count	Outer Dia. (mm)	长期 Long Term	短期 Short Term	长期 Long Term	短期 Short Term	动态 Dynamic	静态 Static	850nm	1300nm	Operation Temperature (℃)	N.W. (kg/km)
2-30	9.5	1000	3000	1000	3000	10D	20D	≤ 3.0	≤ 1.5	-40℃~+60℃	86

All Dielectric Adss Wire , 24core Aerial Self Supporting Aerial Cable
