Aerial ADSS Fiber Optic Cable

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	ADSS-48
Certification :	ROSH ,TLC, CCC, ISO
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T, Western Union
Supply Ability :	500km per week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

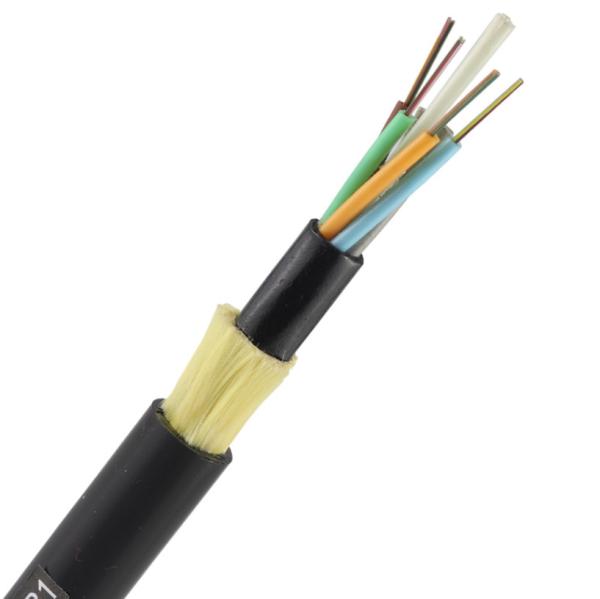

Aerial ADSS Fiber Optic Cable

48 Core Outdoor Aramid Yarn Single Mode Self Supported ADSS Fiber Optical Cable

PRODUCT DESCRIPTION

ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics Filled with a water-blockingfilling compound, the tube is stranded around FRP as a non-metallic central strength member into compact andcircular cable core ADSS cables are ideal for outside plant aerial applications, the lightweight cable andall-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.

Characteristics

1. Small cable diameter, light weight, 100m span, low attached load on tower

2. Tensile strength is over 90KN

3. The following measures are taken to ensure the cable watertight:
4. Single Fiber Reinforced Plastic as the central strength member
5. Loose tube filling compound
6. 100% cable core filling

Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

Appicable fieds:
Railways, power and telecommunication pole routes. Suitable for installation on poles and on the power distribution network. Aerial self-supporting applications at short, medium and long span distances. Ideal for transmission lines with high electrical field strength. Can be used in areas suffered from frequent lightningldeal for transmission lines with high electrical field strength.

Structure Characters:
Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period

Fiber Parameters

Category	Description		Specifications
			G.652D
Optical Specifications	Attenuation	@1310nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
