128 Core Central Loose Tube , OPGW Single Mode G652d Fiber Optic Cable

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	OPGW
Certification :	ISO,ANATEL,ROSH,TLC，CCC
Price :	usd 5.5
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100km per week
Delivery Time :	within 7 working days

Add to Cart

Product Details
Company Profile

128 Core Central Loose Tube , OPGW Single Mode G652d Fiber Optic Cable

Overhead Ground Wire Central Loose Tube 128 Core Single Mode Optical Fiber Composite Opgw Cable

OPGW Mainly used for power communication with accessories,relay protection,automatic transmission,installation together with high-voltage lines.

The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.

Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options

Applications:

● Replacement of existing ground wires and reconstruction of old lines.

● Applicable to low-grade lines, such as GJ50/70/90 and etc.

Main Features:

● Small cable diameter, light weight, low additional load to the tower;

● The steel tube locates at the center of the cable, no second mechanical fatigue damage.

● Low resistance to side pressure, torsion and tensile (single layer).

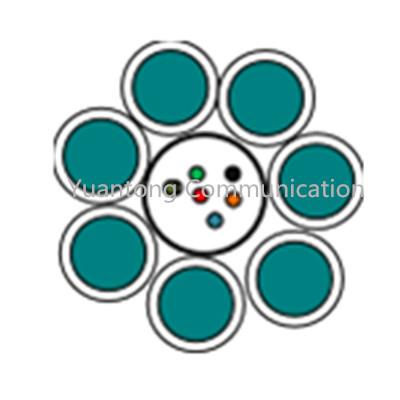

Structural parameters	Material	No.	Raw material diameter(mm)
Uni-tube	Stainless steel optic unit	1	5.20
First layer	ACS(30%IACS)	7	3.80

NO.	Subject	Unit	Technical parameter
1	Optic fiber type	/	G.652D
2	Numbers of optic fiber cores	Cores	96/128
3	Attenuation characteristics	1310nm(dB/km)	≤0.35
3	Attenuation characteristics	1550nm(dB/km)	≤0.22
4	Cable external diameter	mm	≤12.8
5	Weight per unit length of optic cable	kg/km	≤502
6	Total cross section	mm²	79.38
6	Cross section of aluminum clad steel wire	mm²	79.38
7	Rate tensile strength RTS	kN	62.0
8	Elastic modulus	GPa	132
9	Linear expansion coefficient	×10-6/℃	13.8
10	20℃ DC resistance	Ω/km	≤0.740
11	Shortcut current(0.5s,20℃～200℃)	kA	9.21
12	Allowable short circuit current capacity (0.5s,20℃～200℃)	kA².S	≥42.4
13	Maximum allowable temperature	℃	200
14	Maximum allowable tension(40%RTS)	kN	24.80
15	Annual average operatingtension(25%RTS)	kN	15.50
16	Minimum allowable bending radius	operation:mm	15D
16	Minimum allowable bending radius	construction:mm	20D
17	Storage installation temperature	Storage(℃)	-40～+80
17	Storage installation temperature	Installation(℃)	-10～+50
