Optical Fiber Composite Ground Wire 30 Core Single Mode Uni-Tube Overhead Aerial Opgw Cable

Description:

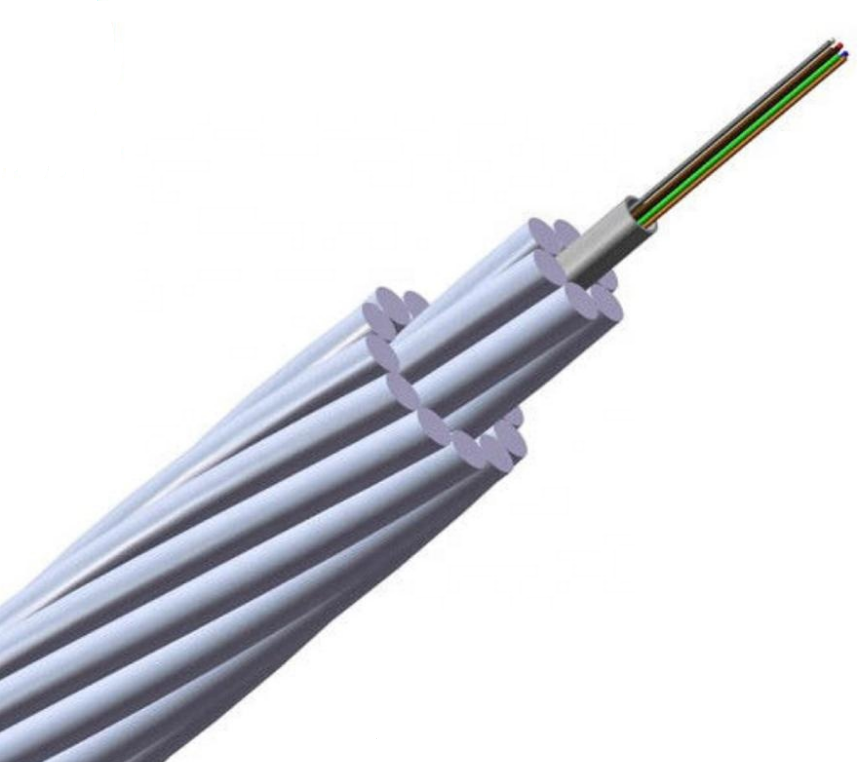

The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. This tube provides protection to the fiber during installation and operation under severe environmental conditions. Aluminium layer over the tube is optional. The stainless optical tube is located at the center of the cable protected by single or multiple layers of aluminium clad steel and aluminium annoy wires. The aluminium clad steel wires are shaped trapezoidally around the optical unit to provide compact construction. The metallic wires provide mechanical strength to withstand severe installation and operating conditions, while achieving conductivity to controltemperature rise during short circuit conditions.

Application:

Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace conventional ground wire of old power line with increasing fiber communication function. They conduct short circuit current and provide lightning resistance.

Features:

1. Up to 144 fibers

2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.

3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.

4. Optical fibers are protected by stainless steel tubes.

5. Excellent security, good bullet resist performance.

6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.
