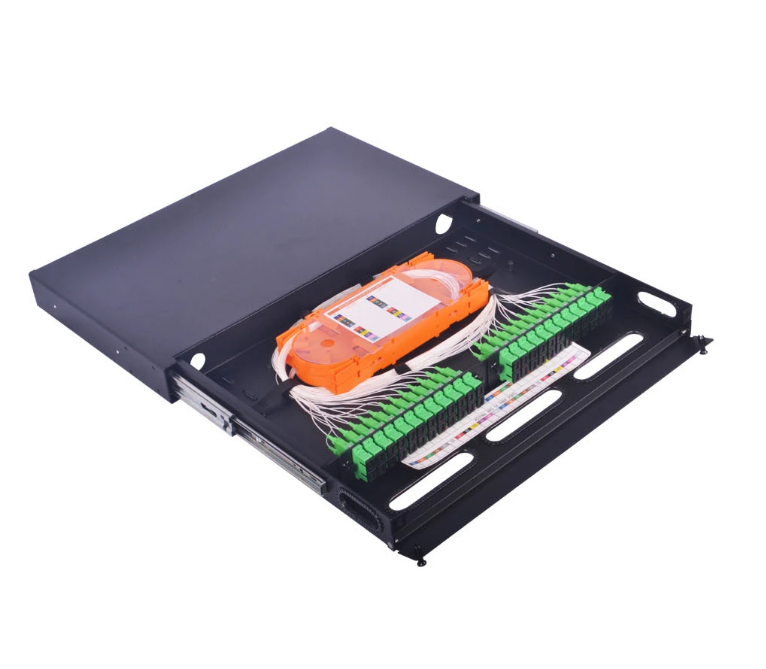

Drawer Type 48 Port 19" Rack Mount Sc Port Fiber Distribution Frame
ODF Box FTTX Accessories
Features
1. 1.5mm steel sheet for a strong housing
2. Slim 1 Unit Mounting Height
3. Ball-bearing slid rails with positive stop
4. Sliding design is easy to work for patching the connectors
5. The hinged front panel is easy to be turned over & be fixed by
the snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can manage both splices and terminations
8. Preassembled shelves in multiple configurations
9. Can includes adapter panels for up to 72 144SC terminations
10. High-density splice tray contains 24 fiber maximum in one tray
11. Clear plastic cover to protect the fibers.
12.4 fiber saddles built-in for 900um tight-buffered fiber winding
& storing.
13. Capable of storing up to 3 meters of 900 μ M tight-buffered
fiber per adapter
14. Snap-in locker design, easy to change adapter panels for
various connector patching
15. Removable rubber grommet allows for pre-terminated fiber trunk
install, protects the cable, and minimizes dust build-up
16. The accessory kit consists of cable ties, mounting ear screws,
and spiral wrap tube
Parameters
Model | Size(mm) | Max. Core Capacity | splice tray | Weight(kg) |
ODF-A | 480x310x43.5 | 48 LC, 24 SC | 12, 24 | 4.8 |
ODF-B | 480x310x43.5 | 48 LC, 24 SC | 12, 24 | 5 |
ODF-C | 485x320x(60-180) | 192LC, 96SC | 12, 24 | / |
ODF-D | 485x270x(43-240) | 192LC, 96SC | 12 core integrated splice tray | / |
ODF-E | 485x310x43.5 | 72 LC, 36 SC, 24 FC | 12, 24 | 3.5 |
ODF-F | 480x310x43.5 | 72 LC, 36 SC, 24 FC | 12, 24 | 5 |
ODF-G 1U | 480x310x43.5 | 120LC | MPO cassette | / |
ODF-G 4U | 480x310x17.5 | 288LC | MPO cassette, 12, 24 splice tray | / |
