Non Metallic Armid Yarn Layer Gyfty Duct Fiber Optic Cable 24 Core

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	GYFTY
Certification :	ROSH ,TLC, CCC, ISO
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T, Western Union
Supply Ability :	500km per week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

Non Metallic Armid Yarn Layer Gyfty Duct Fiber Optic Cable 24 Core

24 Fiber Outdoor Non-Metallic Armid Yarn Layer Filling Loose Tube Gyfty Duct Fiber Optic Cable

Description:

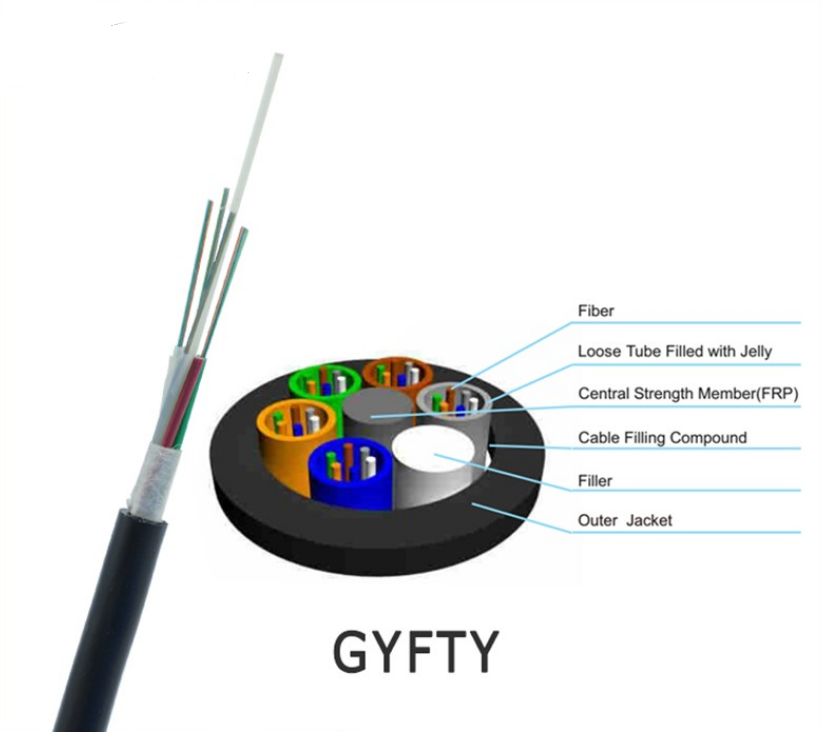

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Features:

1. low transmission attenuation and dispersion.

2. Reasonable design, precise control of excess length of fibers in the loose tube and optimum cabling process provides the cable excellent mechanical and environmental properties.

3. The SZ-stranded, loose tube design isolated fibers from installation and environmental rigors.

Application:

Backbones and Access.
Installed in ducts, lashed/Aerial.

Model	Description	Applications

GYFTY	GYFTY outdoor fiber optic cable,Non-metallic strength member,layer filling loose tube,PE sheath	Overhead&Pipeline laying&Strong electromagnetic and high voltage Area

Tensile Strength (N)		Crush Resistance (N/100mm)		Bned Radius (mm)		Working Temperature(℃)		Max. attenuation (dB/km)
Long term	short term	Long term	short term	Static(D)	Dynamic (D)	Min.TA	Max.TB	1310μm	1550μm
600	1500	300	1000	10 D	20 D	-40℃	+60℃	≤0.36	≤0.22

Category	Description		Specifications
			G.652D
Optical Specifications	Attenuation	@1310nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
