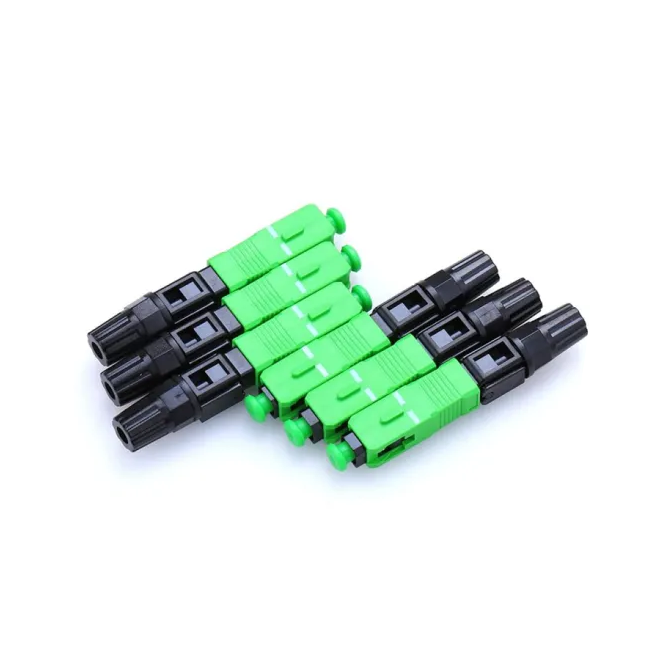

    Sc APC Fast Fiber Optic Cable Connectors , Green Ftth Connector

    Ask Lasest Price
    Brand Name : YUANTONG
    Model Number : LW-FC001
    Certification : ISO,ANATEL,ROSH,TLC,CCC
    Price : usd 0.01
    Payment Terms : L/C
    Supply Ability : 1000pcs per day
    Delivery Time : within 7 working days
    • Product Details
    • Company Profile

    Sc APC Fast Fiber Optic Cable Connectors , Green Ftth Connector

    Sc Field Assembly Optical FTTH Connector Green Sc/APC Fast Optica Cable Connector


    Product Description:
    Fast connector is a good solution to field wiring and fiber-to-the home engineering connector. Assembly without glue, grinding and electrical tools, is widely used in construction section, the place need to quickly connect, to provide a fast and stable connector for the operation. It adopts the latest fiber formed technology. All the optical and mechanical index meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional splice opinion, offer the powerfull support for FTTx.

    Feature:
    1. Low insertion loss
    2. High return loss (low amounts of reflection at the interface)
    3. Ease of installation
    4. Low cost
    5. Reliability
    6. Low environmental sensitivity
    7. Ease of use

    Application:
    1. CATV
    2. Active device termination
    3. Telecommunication networks
    4. Metro
    5. Local Area Networks (LANs)
    6. Data processing networks
    7. Test equipment
    8. Premise installation
    9. Wide Area Networks(WANs)

    Product Specification:

    ItemParameter
    Cable Scope3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
    Size51*9*7.55mm
    Coating Diameter250μm
    ModeSM
    Operation Timeabout 15s(exclude fiber presetting)
    Insertion Loss≤ 0.3dB(1310nm & 1550nm)
    Return Loss≤ -50dB for UPC, ≤ 55dB for APC
    Success Rate>98%
    Reusable Times>5 times
    Tighten Strength of Naked Fiber>5 N
    Tensile Strength>30 N
    Temperature-4 0 ~ +85 C
    On-line Tensile Strength Test (20 N)IL ≤ 0.3dB
    Mechanical Durability(500 times)IL ≤ 0.3dB
    Drop TestIL ≤ 0.3dB

    Sc Field Assembly Optical FTTH Connector Green Sc/APC Fast Connector
