    Power Communication Opgw Adss Cable , 24 Core Optical Power Ground Wire

    Ask Lasest Price
    Brand Name : YUANTONG
    Model Number : OPGW
    Certification : ISO,ANATEL,ROSH,TLC,CCC
    Price : usd 5.5
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100km per week
    Delivery Time : within 7 working days
    • Product Details
    • Company Profile

    Power Communication Opgw Adss Cable , 24 Core Optical Power Ground Wire

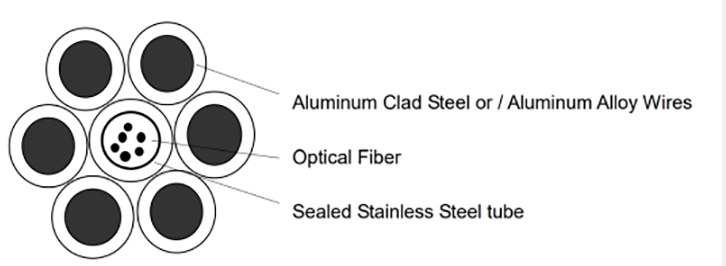

    OPGW Typical Designs of Central Stainless Steel Loose Tube
    • OPGW Mainly used for power communication with accessories,relay protection,automatic transmission,installation together with high-voltage lines.

      The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.

    Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options


    Applications:

    ● Replacement of existing ground wires and reconstruction of old lines.

    ● Applicable to low-grade lines, such as GJ50/70/90 and etc.


    Main Features:

    ● Small cable diameter, light weight, low additional load to the tower;

    ● The steel tube locates at the center of the cable, no second mechanical fatigue damage.

    ● Low resistance to side pressure, torsion and tensile (single layer).


    Technical Parameter

    Typical design for Single Layer:

    SpecificationFiber CountDiameter (mm)Weight (kg/km)RTS (KN)Short Circuit (KA2s)
    OPGW-32(40.6;4.7)127.824340.64.7
    OPGW-42(54.0;8.4)249313548.4
    OPGW-42(43.5;10.6)24928443.510.6
    OPGW-54(55.9;17.5)3610.239467.813.9
    OPGW-61(73.7;175)4810.843873.717.5
    OPGW-61(55.1;24.5)4810.835855.124.5
    OPGW-68(80.8;21.7)5411.448580.821.7
    OPGW-75(54.5;41.7)60124596336.3
    OPGW-76(54.5;41.7)601238554.541.7

    Typical design for Double Layer:

    Specification

    Fiber CountDiameter (mm)Weight (kg/km)RTS (KN)Short Circuit (KA2s)
    OPGW-96(121.7;42.2)1213671121.742.2
    OPGW-127(141.0;87.9)241582514187.9
    OPGW-127(77.8;128.0)241554777.8128
    OPGW-145(121.0;132.2)2816857121132.2
    OPGW-163(138.2;183.6)3617910138.2186.3
    OPGW-163(99.9;213.7)361769499.9213.7
    OPGW-183(109.7;268.7)4818775109.7268.7
    OPGW-183(118.4;261.6)4818895118.4

    261.6
