12 Core All dielectric Fig-8 Self-supporting PE Sheath
Communication Outdoor Fiber Optic Cable
| Model | Description | Applications | Tensile Strength (N) | Crush Resistance (N/100mm) |
| Long term | short term | Long term | short term |

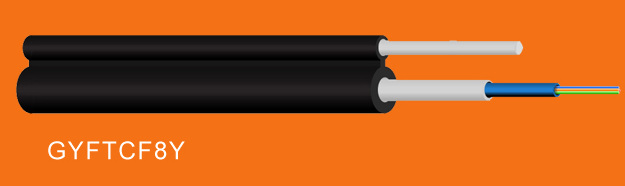

| GYFTCF8Y | Non-metallic strength member,Outdoor layer filling loose tube,All
dielectric fig.8 self-supporting, PE sheath communication outdoor
optical cable | Self-supporting overhead laying | 2000 | 5000 | 300 | 1000 |
Bned Radius
(mm) | Working Temperature(℃) | Max. attenuation (dB/km) | fibers | OD(mm) | weight kg/km |
| Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm |
| 10 D | 20 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 | 2～144 | 9.5～18.3 | 65～166 |
| Category | Description | Specifications |
| G.652D |
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km |
| Attenuation discontinuity | ≤0.05 dB |
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km |
| @1525~1575nm | ≤0.05 dB/km |
| Zero Dispersion Wavelength | 1300~1324nm |
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) |
| Dispersion | @1310nm | ≤3.5 ps/nm.km |
| @1550nm | ≤18 ps/nm.km |
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 |
| Cable Cutoff Wavelength(λcc) | ≤1260nm |
| Effective Group Index of Refraction | @1310nm | 1.4675 |
| @1550nm | 1.4681 |
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB |
Geometric
Specifications | Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm |
| Cladding Diameter | 125±1μm |
| Cladding Non-Circularity | ≤1.0% |
| Coating Diameter | 245±7μm |
| Coating/Cladding Concentricity Error | ≤8μm |
| Core/Cladding Concentricity Error | ≤0.8μm |
Mechanical
Specifications | Proof Test level | ≥1.0% |
| Fiber Curl Radius | ≥4.0m |
| Peak Coating Strip Force | 1.3~8.9N |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000
KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
