G652D Opgw Fiber Optic Cables YTTX 48 Core

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	Opgw
Certification :	ETL, UL, CCC, RoHS, ce,
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, D/P
Supply Ability :	500km per week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

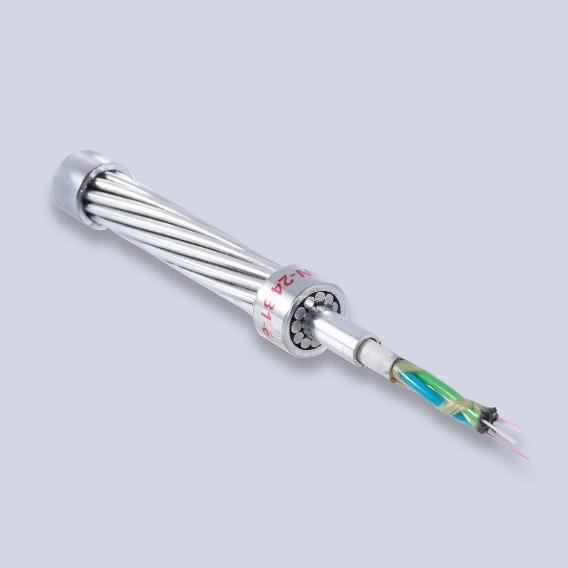

G652D Opgw Fiber Optic Cables YTTX 48 Core

YTTX 48 Core G652D Opgw Fiber Optic Cables High Quality

Application
OPGW is mainly applied in communication line of newly constructed high voltage transmit electricity system with 35 KV or above, or replacement of existing ground wire of previous overhead high voltage transmit electricity system, adding of communication lines and conduction of short-circuit current or provision of anti-lightning protection.

Feature

Diameter of the cable is small with a low additional load to the pole and tower.
Design of stainless steel tube is reasonable and excess lengths of the fiber is correct.
Stainless steel tube protects the fiber with powerful tensile strength.
Optical unit of the stainless steel tube is the interlayer of the cable and it can resist twist and has good lateral pressure performance.
With good safety performance and strong shooting resistance performance, not easy to be stolen
Different armor combinations or meeting different combinations of electrical and mechanical property.

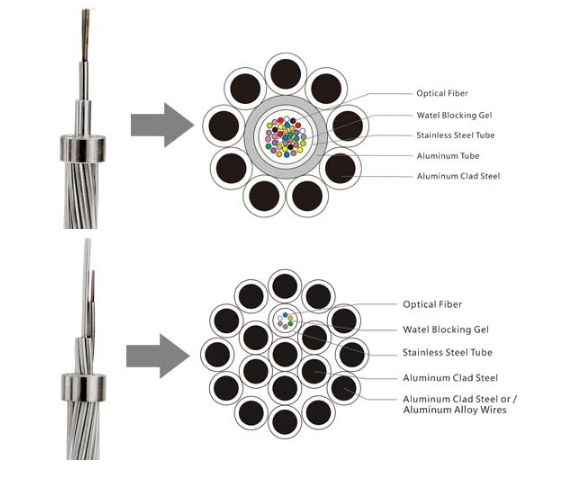

Section diagram:
OPGW cable has two constructions:
Central loose tube type---The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. This tube provides protection to the fiber during installation and operation under severe environmental conditions. Aluminium layer over the tube is optional. The stainless optical tube is located at the center of the cable protected by single or multiple layers of aluminium clad steel and aluminium annoy wires. The aluminium clad steel wires are shaped trapezoidally around the optical unit to provide compact construction. The metallic wires provide mechanical strength to withstand severe installation and operating conditions, while achieving conductivity to control temperature rise during short circuit conditions.
This type can accommodate up to 48 fibers in a cable. Despite such a high fiber count in a single tube, each optical fiber is clearly distinguishable utilizing a fiber identification system consisting of coloring and the number of ring marks on it. This compact design features high mechanical strength and fault current rating within a smaller diameter. The smaller diameter also results in excellent sag tension performance.
Multi loose tube type--- The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer cable.
The multi loose tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multi loose tube type can meet the requirement of huge cross and large current capacity.

Standard

IEEE 113

Packing:

Wooden drum or Iron wooden drum

Technical Parameter

Central loose tube type

Model	Structure(No.of wires*diameter/conductivity)		Cross section		Diameter	Unit weight	Rated breaking force	DC resistance	Short circuit current capacity
	Central optical unit	Outer layer	Aluminum clad steel wire	Total	Diameter	Unit weight	Rated breaking force	DC resistance	Short circuit current capacity
	Central optical unit	Outer layer	mm2	mm2	mm	Kg/km	KN	Ω/km	KA2S
OPGW-24B1-42[54;8.4]	1x3.0/24B1	6x3.0/20AS	42.41	42	9	309	54	2.03	8.4
OPGW-24B1-42[43.5;10.6]		6x3.0/27AS	42.41	42	9	281	43.5	1.53	10.6
OPGW-24B1-42[35.5;11.5]		6x3.0/30AS	42.41	42	9	268	35.5	1.37	11.5
OPGW-30B1-48[61.4;10.9]	1x3.2/30B1	6x3.0/20AS	48.25	48	9.6	348	61.4	1.78	10.9
OPGW-30B1-48[49.5;13.7]		6x3.0/27AS	48.25	45	9.6	315	49.5	1.34	13.7
OPGW-30B1-48[40.3;14.9]		6x3.0/30AS	48.25	48	9.6	3.1	40.3	1.21	14.9
OPGW-30B1-51[63.9;12.3]	1x3.3/30B1	6x3.3/20AS	51.32	51	9.9	368	63.9	1.68	12.3
OPGW-30B1-51[52.7;15.5]		6x3.3/27AS	51.32	51	9.9	333	52.7	1.26	15.5
OPGW-30B1-51[42.9;16.8]		6x3.3/30AS	51.32	51	9.9	318	42.9	1.14	16.8
OPGW-30B1-51[33.2;20.8]		6x3.3/40AS	51.32	51	9.9	268	33.2	0.85	20.8
OPGW-36B1-54[67.8;13.9]	1x3.4/36B1	6x3.4/20AS	54.48	54	10.2	389	67.8	1.58	13.9
OPGW-36B1-54[55.9;17.5]		6x3.4/27AS	54.48	54	10.2	352	55.9	1.19	17.5
OPGW-36B1-54[45.5;19]		6x3.4/30AS	54.48	54	10.2	336	45.5	1.07	19
OPGW-36B1-54[35.2;23.4]		6x3.4/40AS	54.48	54	10.2	283	35.2	0.8	23.4
OPGW-40B1-58[69.6;15.6]	1x3.5/40B1	6x3.5/20AS	57.73	58	10.5	410	69.6	1.49	15.6
OPGW-40B1-58[59.2;19.6]		6x3.5/27AS	57.73	58	10.5	371	59.2	1.12	19.6
OPGW-40B1-58[48.3;21.3]		6x3.5/30AS	57.73	58	10.5	354	48.3	1.01	21.3
OPGW-40B1-58[37.3;26.3]		6x3.5/40AS	57.73	58	10.5	298	37.3	0.76	26.3
OPGW-48B1-61[73.7;17.5]	1x3.6/48B1	6x3.6/20AS	61.07	61	10.8	432	73.7	1.41	17.5
OPGW-48B1-61[62.7;22]		6x3.6/27AS	61.07	61	10.8	391	62.7	1.06	22
OPGW-48B1-61[51.1;23.8]		6x3.6/30AS	61.07	61	10.8	373	51.1	0.95	23.8
OPGW-48B1-61[39.5;29.5]		6x3.6/40AS	61.07	61	10.8	313	39.5	0.72	29.5
OPGW-50B1-65[76.6;19.5]	1x3.7/50B1	6x3.7/20AS	64.51	65	11.1	455	76.6	1.33	19.5
OPGW-50B1-65[66.2;24.5]		6x3.7/27AS	64.51	65	11.1	411	66.2	1	24.5
OPGW-50B1-65[53.9;26.6]		6x3.7/30AS	64.51	65	11.1	392	53.9	0.9	26.6
OPGW-50B1-65[41.7;32.9]		6x3.7/40AS	64.51	65	11.1	329	41.7	0.68	32.9
OPGW-54B1-68[80.8;21.7]	1x3.8/54B1	6x3.8/20AS	68.05	68	11.4	478	80.8	1.26	21.7
OPGW-54B1-68[69.8;27.3]		6x3.8/27AS	68.05	68	11.4	432	69.8	0.95	27.3
OPGW-54B1-68[56.9;29.6]		6x3.8/30AS	68.05	68	11.4	412	56.9	0.86	29.6
OPGW-54B1-68[44;36.6]		6x3.8/40AS	68.05	68	11.4	346	44	0.64	36.6
OPGW-60B1-75[86.7;26.6]	1x4.0/60B1	6x4.0/20AS	75.4	75	12	527	86.7	1.14	26.6
OPGW-60B1-75[77.4;33.5]		6x4.0/27AS	75.4	75	12	476	77.4	0.86	33.5
OPGW-60B1-75[63;36.3]		6x4.0/30AS	75.4	75	12	453	63	0.77	36.3
OPGW-60B1-75[48.7;44.9]		6x4.0/40AS	75.4	75	12	380	48.7	0.58	44.9

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
