YTTX Small Diameter Air Blown Micro 4 Core Optical Fiber Cable GCYFXTY

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	GCYFXTY
Certification :	ROSH ,TLC, CCC, ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, D/P
Supply Ability :	500km per week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

YTTX Small Diameter Air Blown Micro 4 Core Optical Fiber Cable GCYFXTY

YTTX low price small diameter air blown micro 4 core optical fiber cable GCYFXTY

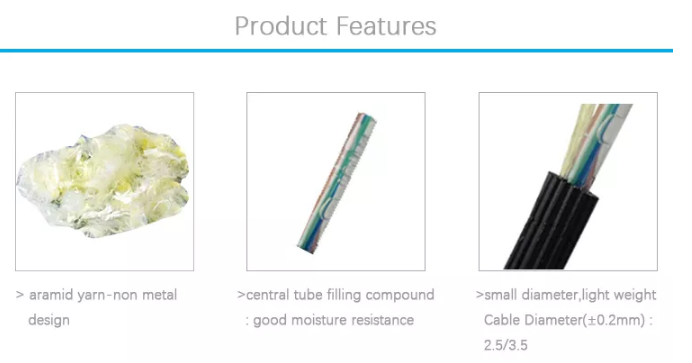

1. The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.
2. The tubes are filled with a water-resistant filling compound.
3. Aramid yarn located between central tube and outer sheath as a non-metallic strength member.
4. The cable is completed with a HDPE sheath.

Characteristics

Non-metal design can prevent the cable from radio interference and
magnetic wave interference.Central tube filling compound ensure
good moisture resistance performance.
High dense fiber packed,small diameter and light weight; it`s easy
for blowing installation progress.
Good flexibility.
Specially designed compact structure is good at preventing loose
tubes from shrinking.

Technical Data

No. of cable				/	2~12	12~24
Fiber type				/	G.657
Loose Tube			Material	mm	PBT
			Diameter (±0.05mm)		1.6	2.4
			Thickness (±0.03mm)		0.3	0.4
			Max fiber		2-12	14-24
Non metallic strength			Material	/	Aramid yarn
Outer Sheath			Material	mm	HDPE
			Thickness		0.5(nominal)0.40(min.)
			Color		Black.
Cable Diameter(±0.2mm)				mm	2.5	3.5
Cable Weight(±10.0kg/km)				kg/km	3.5	4.5
Attenuation coefficient		1310nm		dB/km	≤0.35
		1550nm			≤0.21
MAX. Tensile Strength				N	120	150
MAX. Crush Resistance				N/ 100mm	1000
Min. bending radius	Without Tension			mm	10.0×Cable-φ
	Under Maximum Tension				20.0×Cable-φ
Temperature range (℃)	Installation			℃	-10℃+40℃
	Transport&Storage				-40℃+60℃
	Operation				-30℃+50℃

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
