12 Core Outdoor GYTS Armoured Optical Fiber Cable Stranded Direct Buried

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	GYTS-12 core
Certification :	ROSH ,TLC, CCC, ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, D/P
Supply Ability :	1000 Kilometer/Kilometers per Month
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

12 Core Outdoor GYTS Armoured Optical Fiber Cable Stranded Direct Buried

12 Core Outdoor Stranded Direct Buried GYTS Fibra Optica Armoured Optical Fiber Cable

Description

250 μ M of fiber is placed in a loose tube made of high modulus plastic. The pipe is filled with waterproof material
Filling compound. A steel wire, sometimes sheathed with polyethylene (PE), used for high fiber dimension cables, located in the center
The core acts as a metal reinforcement. The tubes (and fillers) are twisted around the reinforcement to form a compact circular cable core.
PSP is applied longitudinally to the cable core, which is filled with filling compound to protect it from
Water ingress. Then, the cable is completed with PE sheath.

Characteristics

Good mechanical and temperature performance;

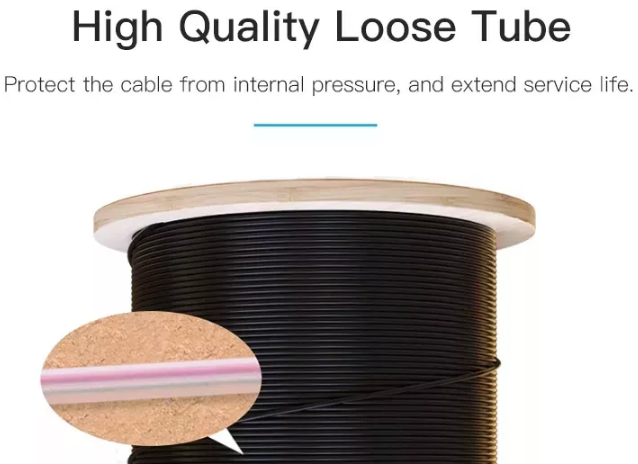

High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Specially designed compact structure is good at preventing loose tubes from shrinking;
PE sheath protect cable from ultraviolet radiation;

item	value
Model Number	GYTS
Type	Fiber Optic Cable
Cable Structure	Multi-Loose Tube
Application	Outdoor duct and conduit
Fiber options	ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber count	2-288 Cores
Installation tensile	1500N
Bend radius (Under installation)	20 x External Diameter of cable
Strength member	Central Steel Wire or Fiberglass reinforced plastic (FRP)
Material of jacket	Black Polyethylene (PE)
Certification	ISO9001/CE/RoHS
Warranty (Year)	2

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
