YTTX GYXTY-4B1 High Density Small Cable Diameter Light Weight

Ask Lasest Price
Brand Name :	YUANTONG
Model Number :	GYXTY-4B1
Certification :	ROSH ,TLC, CCC, ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, D/P
Supply Ability :	1000 Kilometer/Kilometers per Month
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

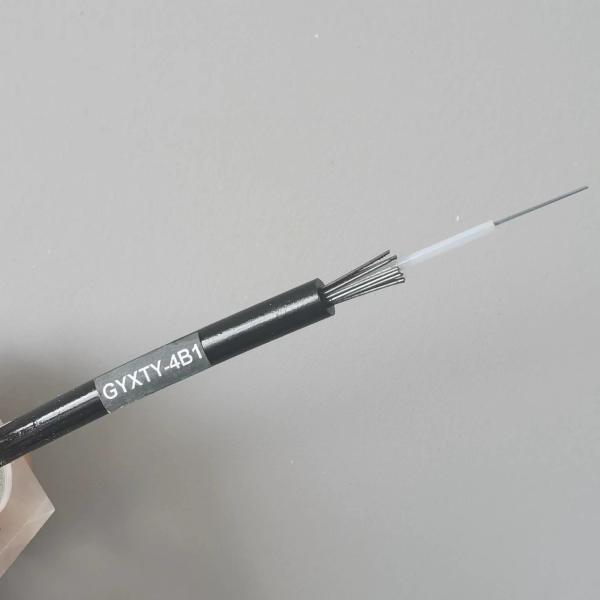

YTTX GYXTY-4B1 High Density Small Cable Diameter Light Weight

YTTX GYXTY-4B1 High density, small cable diameter, light weight

Description

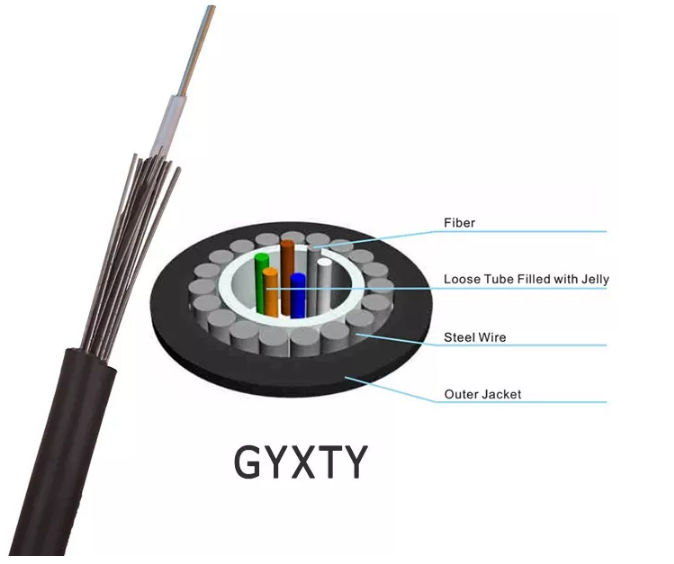

Steel wire armored single tube optical cable, the optical fiber is placed in a loose buffer tube. The cable core is protected with jelly to prevent water intrusion and migration, and is protected with a steel wire armor. The entire case is black polyethylene.

Features

Single tube gel-filled construction for superior fiber protection.
Compact and easy to install.
UV and moisture resistant design

Applications

Installed in duct, direct burial.

FTTx.

Optical Charateristics

Fiber Type		G.652	G.655	50/125 um	62.5/125 um
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
2~12	7.5	74	3000	1000	1500	600
14~24	8.0	80	3000	1000	1500	600

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people'

for more detailed information.

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
