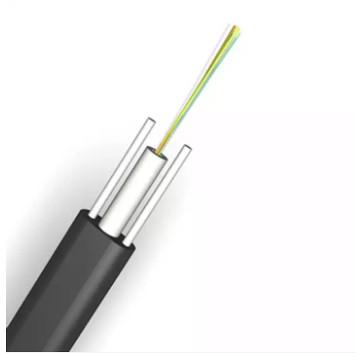

    YTTX FTTH Loose Tube Type Flat Fiber Optic Drop Cable Indoor Outdoor 4 8 12 Core

    Ask Lasest Price
    Brand Name : YUANTONG
    Model Number : FTTH Drop cable
    Certification : ROSH ,TLC, CCC, ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, D/P
    Supply Ability : 500km per week
    Delivery Time : 7 days
    MOQ : 1 KM
    • Product Details
    • Company Profile

    YTTX FTTH Loose Tube Type Flat Fiber Optic Drop Cable Indoor Outdoor 4 8 12 Core

    YTTX Indoor/Outdoor FTTH 4 8 12 core Loose Tube Type flat Fiber Optic Drop Cable
    Product Description

    Two parallel fiber reinforced plastics are used as strength members to ensure good compressive performance

    To protect the optical fiber.A single steel wire as an additional strength member shall ensure good tensile strength and self-sufficiency.


    Features

    1. Two parallel fiber reinforced plastics are used as strength members to ensure good compressive performance to protect the optical fiber.

    2. Environmental protection - low smoke, zero halogen and flame retardant sheath.

    3. A single steel wire as an additional strength member shall ensure good tensile strength and self-sufficiency.

    4. Simple structure and light weight.


    Application

    Use in the fiber to the home projectsIdeal to use for direct installation into the housesSuitable for being'

    Used in homes and offices


    Fiber parameter:

    NOItemSpecifications
    G.657A1
    1Cladding Diameter (μm)125±0.7
    2Cladding non-circularity (%)≤0.7
    3Core-cladding concentricity error (μm)≤0.5
    4Mode field Diameter @1310 (μm)(8.6~9.5)±0.4
    5Cladding -coating concentricity error (μm)≤12.0
    6Coating Diameter(μm)245±0.5
    7Fiber Cutoff Wavelength (nm)λccf ≤1260
    8Attenuation(max.) (dB/km)1310nm≤0.4
    1550nm≤0.3

    Cable Parameters:

    ItemSpecifications
    Fiber TypeSM
    Fiber count12
    JacketDiameter(3.0±0.1)×(9.0±0.1)mm
    MaterialLSZH
    Colorblack
    Strength Membersteel

    Mechanical and Environmental Characteristics:

    ItemsUniteSpecifications
    Tension(Long Term)N200
    Tension(Short Term)N600
    Crush(Long Term)N/10cm300
    Crush(Short Term)N/10cm1000
    Min. Bend Radius(Dynamic)mm25
    Min. Bend Radius(Static)mm10
    Installation temperature-20~+60
    Operation temperature-40~+70
    Storage temperature-40~+70




    FAQ
    1. Are you the real manufacturer?
    Yes. We are the real manufacturer with 18 years' history.

    2. What is your fiber brand ?
    Corning, SEI, YOFC, FiberHome, etc

    3. Can you accept small order?
    Yes, small order is available .We support new project of our customers as we know business is always from small order.

    4.What is your warranty period?
    25 years for fiber optic cable

    5. Which kind of certification you have ?
    ISO9001, SGS, 3C Anatel.

    6. What is your delivery time?
    Usually within 2-3 working days

    7. What about your annual production capacity?
    Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
    FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
    Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

    8. What is your payment way?
    T/T, L/C, Western Union and Paypal.

    9. Can you supply customized products and logo?
    -Yes. We supply OEM&ODM service. You can send us your drawing.

    10. Can you supply your cable test value form?
    -Yes. After finishing production , we can supply if you ask.

    11. Do your factory inspect every roll of cables?
    -Yes. we factory do 100% inspection per order.
