Optical fiber cable outdoor and indoor single-mode G657A2 optical
fiber/optical fiber FTTH tap cable
Product Description

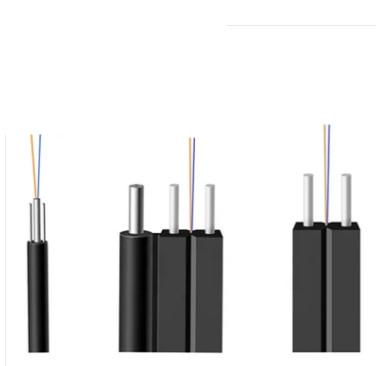

The optical fiber unit is located in the center. Two parallel FRP
or steel wires are placed on both sides. Steel wire shall also be
used as additional strength member. The cable is then provided with
a black low smoke halogen-free sheath
Characteristics
1. Special low bending sensitivity optical fiber provides high
bandwidth and excellent communication transmission characteristics;
2. Simple structure, light weight and high practicability;
3. The novel groove design is easy to peel and splice, simplifying
installation and maintenance;
4. Low smoke, halogen-free, flame retardant sheath.
Applications
1. It is used in the access network or as an access cable from
outdoor to indoor in the customer's house network;
2. It is used as an access building cable in the house power
distribution system, especially for indoor or outdoor overhead
access cables
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20ºC) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000
KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
